Desktop + Handheld

ZG106 Series

  • Ultra low cost CO2 Monitor achieved by New IR-SoC Technology
  • It uses Dual Beam NDIR technology to improve the long term stability
  • Portable, accurate handheld CO2 Monitor
  • The Alarm mode will sound at 1000 PPM or adjust the alarm level
  • Max/Min mode
  • ZG106 Series
  • ZG106 Series
  • ZG106 Series
    Relative Humidity
  • ZG106 Series
    3 IN 1


  • ZyAura ZG106 Series is the Portable Multi CO2 detector with Dual Beam NDIR technology, which measures the indoor air quality index, including the CO2, ambient temperature, and relative humidity. It is useful in verifying indoor air quality, HVAC system performance, and applications at business, enterprise and residential.
    general intro

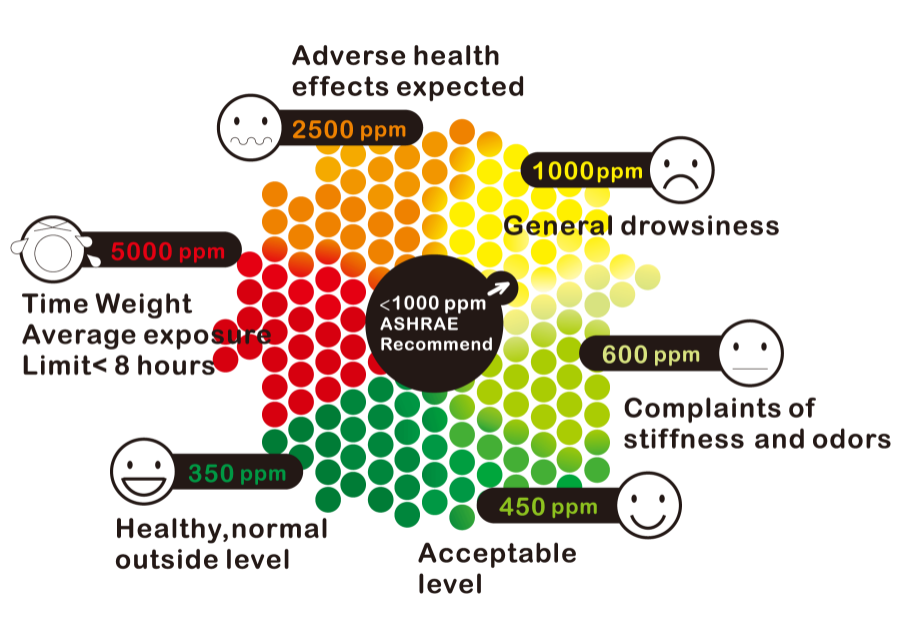

    Indoor Air Quality (IAQ) is measure for the quality of air in interiors, the comfortable indoor environmental quality can make people feel fresh, work efficiency and good for the health. The CO2 concentration is the important factor of good indoor air quality. People breath in oxygen and breath out CO2, nowadays people often close the windows to avoid noise and enjoy the comfort living and working environment provided by air-conditioning systems, which results in the fact that the indoor concentration of CO2 is far higher than outdoor average. With the high CO2 concentration and non- proper ventilation, people will feel headaches, dull, drowsiness, lose of concentration and correspond to the high levels of dust, chemicals and bacteria in the air.

    • CO2 Measurement Range:
      1. ZG106/ZG106R: 0~3,000ppm
      2. ZG106A-M: 0~10,000ppm
    • CO2 Accuracy:
      1. ZG106:  ±50 ppm or ±5% of reading
      2. ZG106R: 0~2000ppm ±70ppm or ±5% of reading, whichever is greater; over 2000ppm: ±7%
      3. ZG109A-M: ±50 ppm or ±5% of reading
    • Temperature Range: 0°C to 50°C (32°F to 122°F) display
    • Temperature Accuracy: ±1°C (±2°F)  When the fan blows to the device directly, the accuracy of temperature is ±1.5°C
    • RH Measurement Range: 20%-90% RH
    • Operating Temperature: 32-122°F (0-50°C) 0-95% RH, non-condensing
    • Power Supply: Two power supply types
      CAUTION: The device can be supplied either by batteries or an AC adapter. DO NOT install batteries and plug in an AC adapter at the same time.
      1. Battery type: Alkaline, AA*4 (80 hours)
      2. Power Requirement 160 mA Peak, 15 mA average from 6V
        ZG106/ZG106A-M: External: 6 VDC from external AC/DC adapter which is included in package(Use specified AC adapter only)
        ZG106R: External: 100~240 VAC 50/60 Hz, 6 VDC from external AC/DC adapter which is included in package(Use specified AC adapter only)
