Desktop + Handheld

ZG1163R

  • The Alarm will sound at 1,000 PPM or adjust the Alarm level
  • Record CO2, temperature and the relative humidity in the past 24 hours
  • Measure CO2, temperature and the relative humidity
  • 3 LED display shows the current indoor air quality
  • Several Modes for adjusting the setting parameters
  • Dual Beam NDIR technology improves the long term stability
  • Compact, portable, accurate desktop CO2 Monitor
  • ZG1163R
    3 LED Display
  • ZG1163R
    3 IN 1
  • ZG1163R
    CO2
  • ZG1163R
    Temperature
  • ZG1163R
    Relative Humidity

Introduction

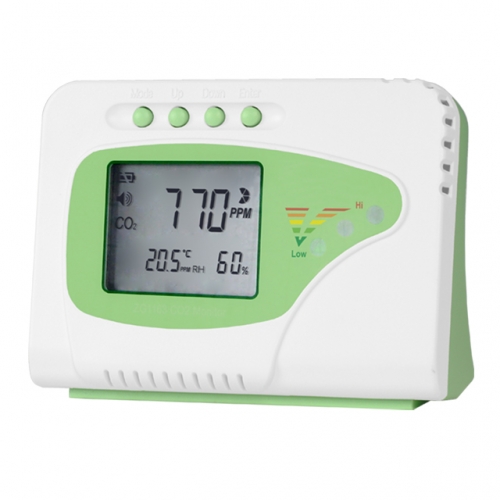

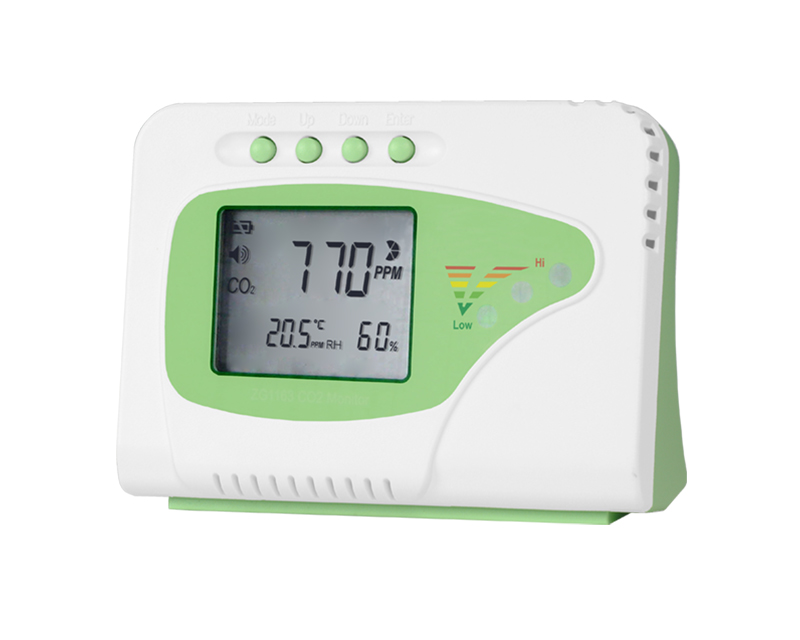

  • ZyAura ZG1163R Portable CO2 Monitor, a smart, compact, and easy-to-use device to measure the CO2 concentration, ambient temperature, and relative humidity. ZG1163R features detect the presence of CO2 in ambient air and indoor air quality; it is widely used in office buildings, schools, exhibitions, shopping malls, meeting rooms, fitness centers, restaurants, and other public places.

    general intro

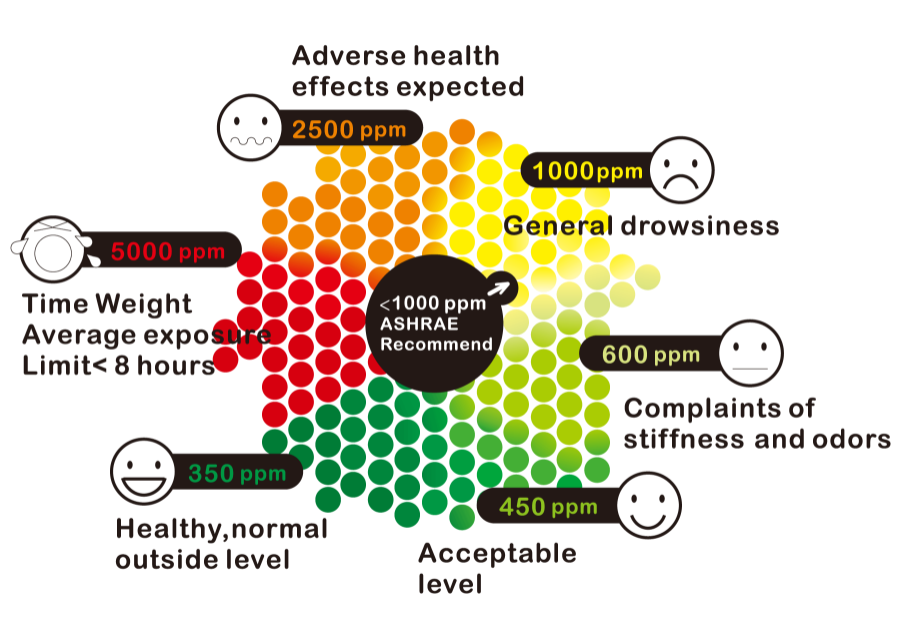

    Indoor Air Quality (IAQ) is measure for the quality of air in interiors, the comfortable indoor environmental quality can make people feel fresh, work efficiency and good for the health. The CO2 concentration is the important factor of good indoor air quality. People breath in oxygen and breath out CO2, nowadays people often close the windows to avoid noise and enjoy the comfort living and working environment provided by air-conditioning systems, which results in the fact that the indoor concentration of CO2 is far higher than outdoor average. With the high CO2 concentration and non- proper ventilation, people will feel headaches, dull, drowsiness, lose of concentration and correspond to the high levels of dust, chemicals and bacteria in the air.

    • CO2 Measurement Range: 0~3,000ppm
    • CO2 Accuracy: 0~2,000ppm: ±70ppm or ±5% of reading, whichever is greater; over 2000ppm: ±7%
    • CO2 Zone LED Display: Green: <800ppm; Yellow: 800~1200ppm; Red: >1200ppm
    • Temperature Range: Display 0°C to 50°C (32°F to 122°F)
    • Temperature Accuracy: ±1°C(±2°F)When the fan blows to the device directly, the accuracy of temperature is ±1.5°C
    • RH Measurement Range: 20%-90% RH
    • Operating Temperature: 0°C to 50°C (32°F to 122°F); 0~95% RH non-condensing
    • Power Supply: 100~240 VAC 50/60 Hz, 6 VDC from external AC/DC adapter which is included in package(Use specified AC adapter only)
